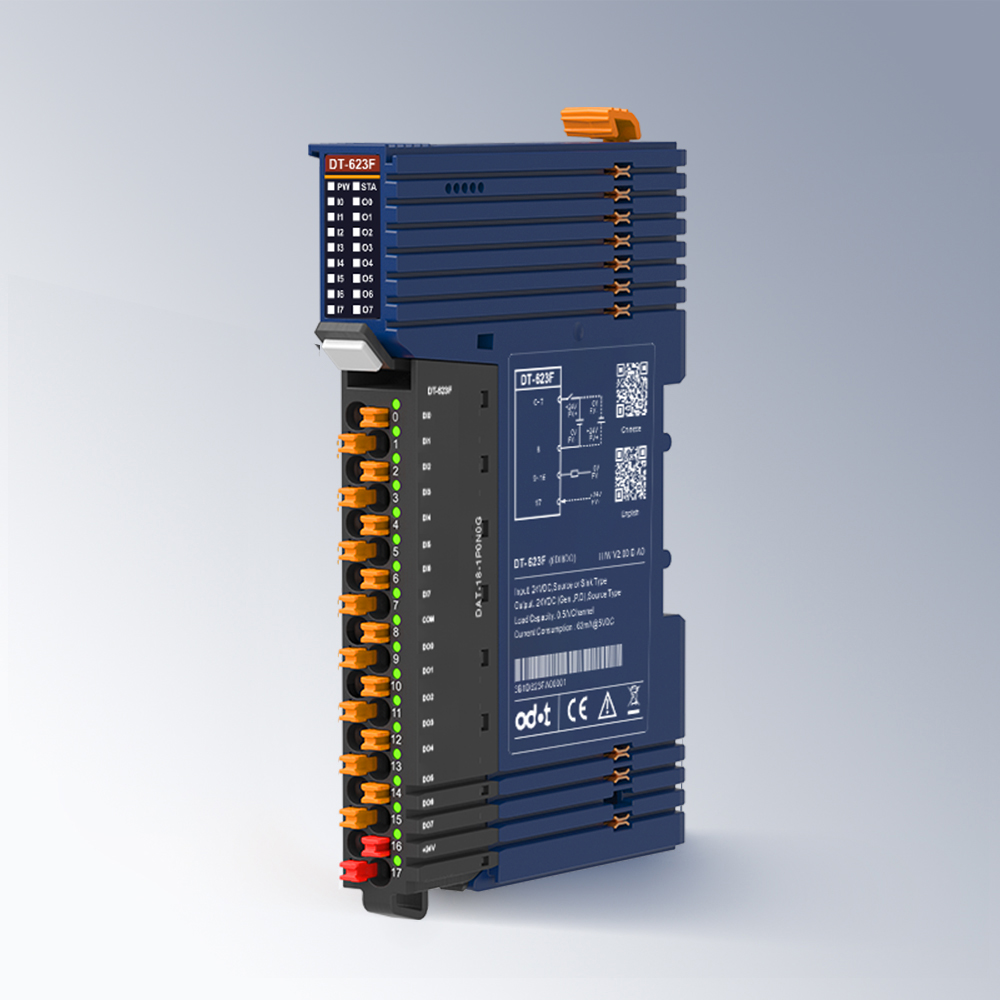

Módulo de E/S remotas DT-623F 8DI 8DO con entradas PNP/NPN

General Parameter

Current Consumption

62mA@5V DC

Field Power

19.2V~28.8V DC (Nominal: 24VDC)

Wirring Diameter

Min.0.2mm²(AWG24)
Max.1.5mm²(AWG16)

Terminal Pluggable

Support

Backplane Bus

Double bus redundancy

Installation

35mm DIN-Rail

Dimension

119 mm *14 mm *80 mm

Input Parameter

Number of Channels

8 channels digital input

Indicator

8 channels indicators

Input Characteristics

IEC 61131 ，Type 3

Input Type

High level input (PNP): support;
Low level input (NPN): support;

Signal “0”

High level input: -30V ~ 5V DC；
Low level input: -5V ~ +3V DC (Fundamental potential FV+)

Signal “1”

High level input: 11V ~ 30V DC；
Low level input: -30V ~ -11V DC (Fundamental potential FV+)

Minimum Voltage

-30V DC

Maximum Voltage

30V DC

Input Delay

OFF to ON: Max.500μs
ON to OFF: Max.500μs

Filter Time

Configurable

Output Parameter

Number of Channels

8 channels digital output

Indicator

8 channel indicators

Output Type

Transistor output, PNP

Load Capacity

12W (0.5A)/ each channel

Load Resistance

Min.48Ω

Output Delay

OFF to ON: Max.100μs
ON to OFF: Max.200μs

Output Voltage

24V DC

Residual Current

<8μA

Switching Frequency

Resistive load: Max. 100Hz
Inductive load: Max.2Hz

Module Fault Handling

Configurable

Protection Function

Short circuit protection: support;
Over temperature protection: support;

Environment Parameters

Horizontal Installation
Operating Temperature

-35℃~60℃

Vertical Installation
Operating Temperature

-35℃~50℃

Storage Temperature

-40℃~85℃

Environment Humidity

5%~95%RH (No condensation)

Installation Altitude

<2000m

Pollution Degree

Ⅱ

Protection Grade

IP20

Mechanical Properties

Comply with IEC 60068-2-6, IEC 6008-2-27

Insulation Withstand

Comply with IEC 61131-2

EMC Performance

Comply with IEC 61131-2, IEC 61000-4
(ESD: Contact discharge ±6kV, Performance level A; Air
discharge±8kV, Performance level A
SURGE: Common mode ±2kV, Performance level A
EFT: ±2kV, Performance level A)
